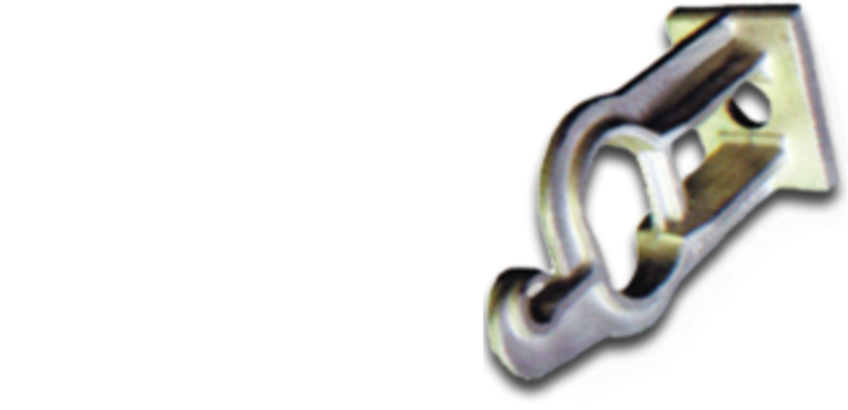

Aluminium Bracket LV ABC cables
Aluminium Bracket LV ABC cables
rsal bracket UIANKON is used for carrying and tension holding low voltage ABC cables. Al
bracket can be attached on generalpurpose bracket, clamping ring for carrying ABC cables or directly
on wooden posts-by screw bolts or tightening whit stainless steel tape.
List of videos
Insulation Piercing Connector
Insulation Piercing Connector Insulation Piercing Connector 1.5-6/35-70 is used for connecting separating duct for public lightening to the distributive self-supporting cable beams under tensions, rubber insert tightening is made by a moment screw with force of 2,5 bar. The joint with a rubber insert prevents electric corrosion, and Al and Cu separating ducts can be connected to house plug boxes.Position 1: place of tearing by a moment screw (automatic regulation of conductor tightening force by means of moment screw which tears out when appropriate moment of 10Nm is achieved). Adjusting is made by a wrench N-10 while assembling and dismantling by a wrench N-10, main duct 16÷70 mm2, separated duct 1,5÷6 mm2. When working under power always wear protection gloves
Tension support clamp for household connection
Tension support clamp for household connection Applied in household connection and carried out by self-supporting cable bunches: 2x16 mm2, 2x25 mm2, 4x16 mm2 and 4x25 mm2, it is used with brackets for low voltage ABC cables beams on connecting
Tension support clamp for LV ABC cable 16÷71.5 mm
Tension support clamp for LV ABC cable 16÷71.5 mm Used for tension support of LV ABC cable bunch wooden, concrete and metal posts or building walls. This clamp is used with LV ABC cables that have supporting conductors with a section of 16÷71.5 mm2.
